ALBERTA AMBER/BLUE SNOW PLOW #75035

$4,914.18

Full Amber/Blue Snow Plow Configuration Package includes:
#S16463 – 1 Amber/Blue 16″ Slim LinQ & ArctiQ Minibar – TX Front Mounted
#S16382 – 1 Amber 360/Blue out the Back 16″ Slim ArctiQ Minibar – RX Rear Mounted
#56046 – 4 Amber/Blue 24″ ArctiQ Warning Sticks
#93610 – 2 Amber Tractor/Spreader Lights
#96043 – 1 Quick Disconnect Junction Box
#722002 – 2 “Y” Harnesses 12″
#722087 – 1 10″ Cable Assembly with 6 Pos DT connectors

  • LinQ enabled Master TX snow plow minibar*
  • Package also powered by ArctiQ safety technology **
  • Metal end caps
  • -40°C cold rated cables
  • SAE Class 1
  • IP69K and IP67 LED modules
  • Potted electronics

* With LinQ Wireless Sync Technology by SWS, snow plow front mounted TX minibars use a GPS clock to keep the entire plow train flashing in unity, with no truck-to-truck radio, vehicle pairing, fleet size limits, or subscription required.

** With ArctiQ technology by SWS, snow plow rear mounted RX beacons and minibars have the ability to take over the system in the event of a master failure and keep the lights on your plow flashing in sync. In the event of an issue with the communication line, ArctiQ SWS snow plow lights will continue flashing independently in a back up mode.

Note:
All extension cables sold separately. Customer to select desired length.
Customer to select checkerboard to suit application. Priced separately.

View cart →

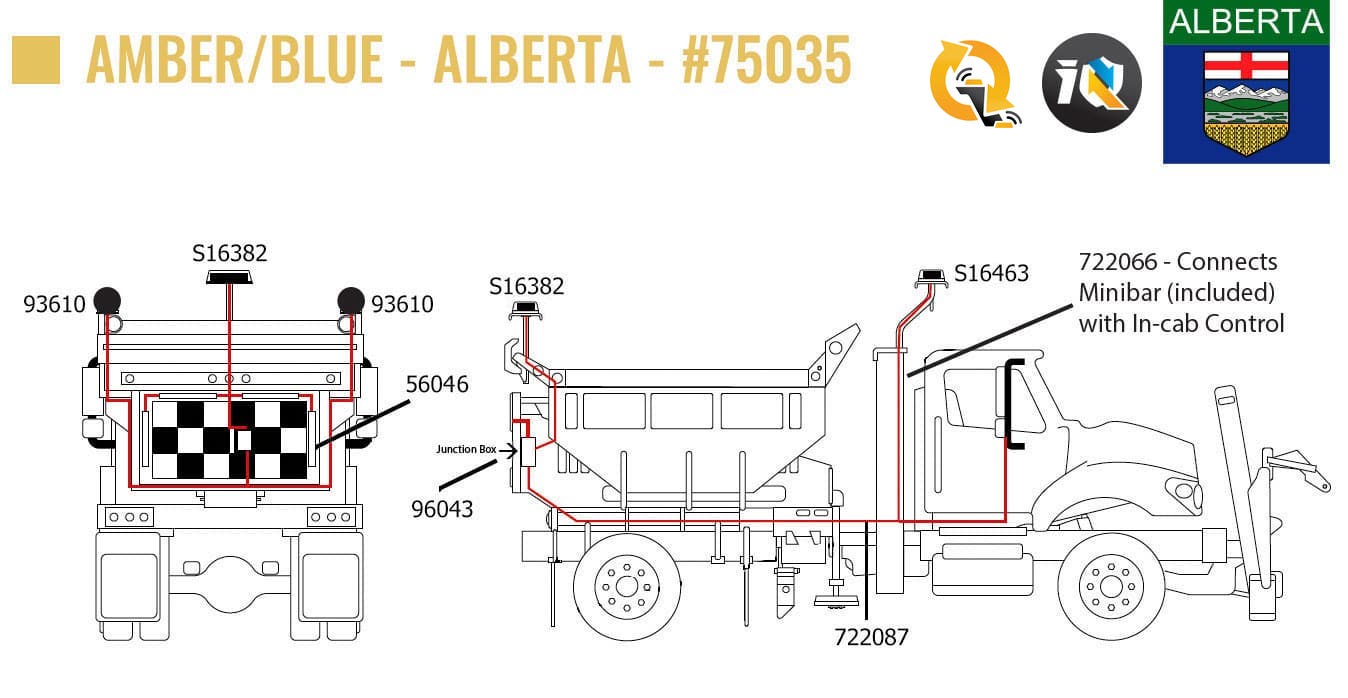

ALBERTA AMBER/BLUE SNOW PLOW #75035
Part # Description Typical Installation Quantity Included in Package? Notes
S16463 Amber/Blue 16" Low Profile LED Slim Minibar 1 Yes
S16382 Amber 360°/Blue out the back 16" Low Profile LED Slim Minibar 1 Yes
96043 Main Junction Box 1 Yes
722087 10' Extension Cable Device to Junction Box 1 Yes
722002 Y Harness DT Series 2 Yes
93610 4" Floodlight Flasher 2 Yes
56046 24" Amber/Blue Warning Stick 4 Yes
722068 10' Extension Cable Device to Junction Box See note No Customer to Select Cable lengths and quantity of each based on installation
722069 20' Extension Cable Device to Junction Box See note No Customer to Select Cable lengths and quantity of each based on installation
722070 30' Extension Cable Device to Junction Box See note No Customer to Select Cable lengths and quantity of each based on installation
722071 40' Extension Cable Device to Junction Box See note No Customer to Select Cable lengths and quantity of each based on installation
722072 50' Extension Cable Device to Junction Box See note No Customer to Select Cable lengths and quantity of each based on installation
405000 3'x6' Full Checkerboard See note No Customer to Select Board to suit application
405002 3'x6' Retroreflective Checkerboard. "Liquid Anti-icing" See note No Customer to Select Board to suit application

FEATURES

  • Meets or exceeds Alberta Transportation/Addendum #10 Standards for Beacons, Minibars, and Warning Sticks
  • Rugged, durable aluminum and polycarbonate construction
  • Quick connection system for easy installation and winter/summer
  • Automatic ambient light photosensor for nighttime dim mode
  • No bulbs or moving parts to fail
  • Other color combinations available
